A00855

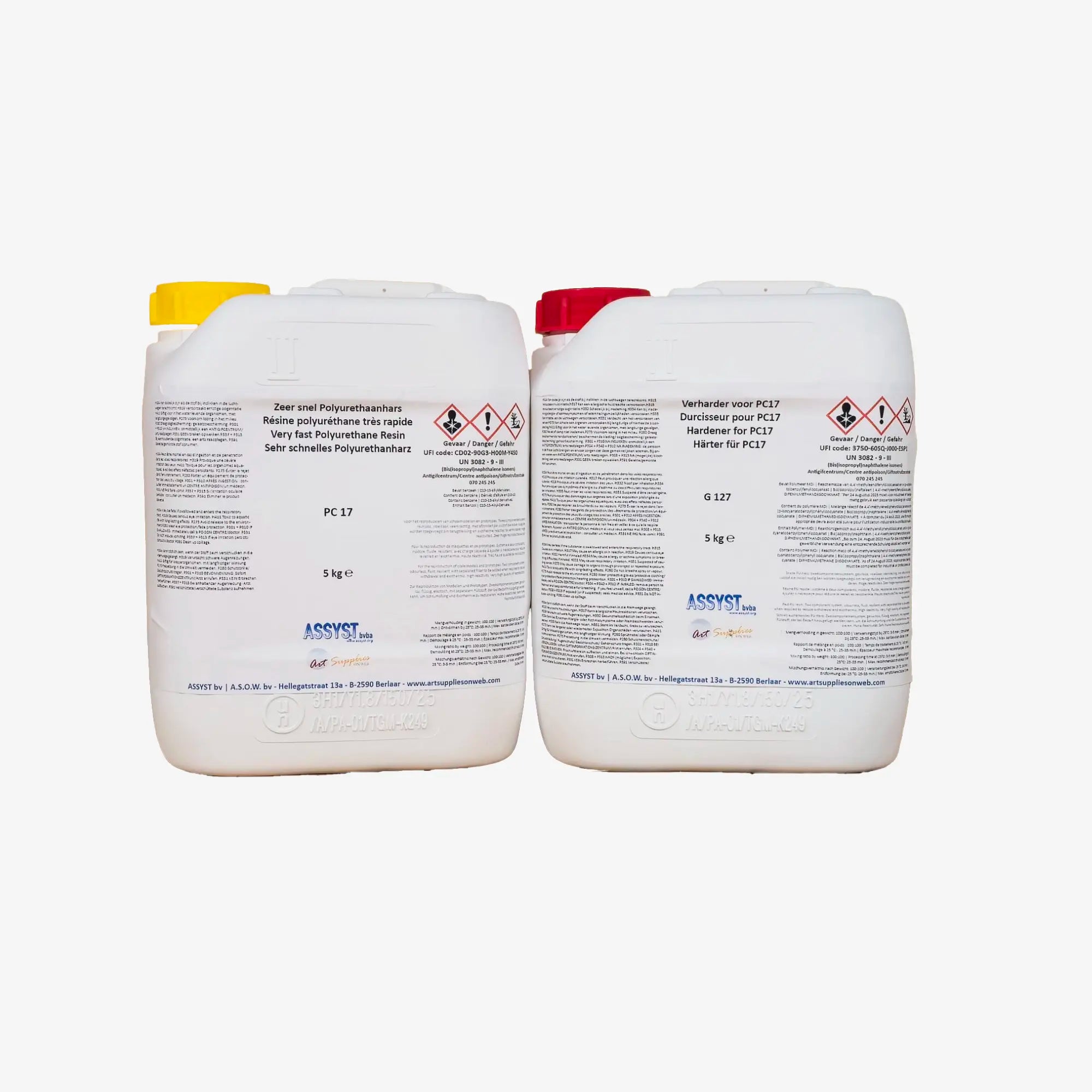

Polyurethane resin PC17+G127

ELANTAS CAMATTINI

... Excl. VAT

( ... Incl. VAT)

Weight 5kg+5kg

Two-component, highly fluid casting resin with fast curing.

More information View images

PC 17

Contains

Benzene, C10-13-alkyl derivatives
Phosphoric trichloride, reaction roducts with propylene oxide

GHS pictograms

H & P & EUH phrases

H304 : May be fatal if swallowed and enters airways

H319 : Causes serious eye irritation

H351 : Suspected of causing cancer

H411 : Toxic to aquatic life with long lasting effects

P201 : Obtain special instructions before use

P273 : Avoid release to the environment

P280 : Wear protective gloves/protective clothing/eye protection/face protection

P301+310 : IF SWALLOWED: Immediately call a POISON CENTER or doctor/physician

P331 : Do NOT induce vomiting

P391 : Collect spillage

G 127

Contains

Polymeric MDI
Reaction mass of 4,4'-methylenediphenyl diisocyanate and o-(p-isocyanatobenzyl)phenyl isocyanate
Bis(isopropyl)naphthalene
4,4'-methyleendifenyldiisocyanaat
DIPHENYLMETHANE DIISOCYANATE

GHS pictograms

H & P & EUH phrases

H304 : May be fatal if swallowed and enters airways

H315 : Causes skin irritation

H317 : May cause an allergic skin reaction

H319 : Causes serious eye irritation

H332 : Harmful if inhaled

H334 : May cause allergy or asthma symptoms or breathing difficulties if inhaled

H335 : May cause respiratory irritation

H351 : Suspected of causing cancer

H373 : May cause damage to organs through prolonged or repeated exposure

H411 : Toxic to aquatic life with long lasting effects

P260 : Do not breathe dust/fume/gas/mist/vapours/spray

P273 : Avoid release to the environment

P280 : Wear protective gloves/protective clothing/eye protection/face protection

P301+310 : IF SWALLOWED: Immediately call a POISON CENTER or doctor/physician

P304+340 : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing

P304+312 : IF INHALED: Call a POISON CENTER or doctor/physician if you feel unwell

P308+313 : IF exposed or concerned: Get medical advice/attention

P331 : Do NOT induce vomiting

P391 : Collect spillage

Product details

Technical Data

Application:

Used for the reproduction of scale models and prototypes. Matrices, foundry patterns, negatives and pilot moulds if it is filled.

Processing methods:

Manual mixing or mechanical mixing. Cast inside the mould within the pot-life of the system. It can be used in the way it is or the mixture with the filler can be added in the suggested or in a different ratio depending on the application and on the required thickness. The greater the filler loading, the lower the shrinkage.

Attention:

Homogenize the resin before use (follow the instructions).

Description:

Two component system, odourless, fluid, resilient with separated filler to be added when required to reduce withdrawal and exothermic. High reactivity. Very high quality of reproduction.

Mixing ratio / weight: 100 gr A + 100 gr B
Processing time: 3-5 min
Curing time: 25-35 min
Hardness (Shore): 73-77 D/15
Density: A: 0.95 g/ml | B: 1.10 g/ml | A+B: 1.08 g/ml
Viscosity: A: 100-140 g/ml | B: 120-150 g/ml
Max thickness: 5 mm
Tensile strength (MN/m²): 22-27
Elongation at break: 5.0-7.5
